Radiomaster TX15 ELRS
- Protocol
- ExpressLRS, 2.4GHz or 900MHz (LR1121)
- Channels
- Up to 16 (receiver dependent)
- Firmware
- EdgeTX
- Gimbals
- V5.0 Hall sensor
- Display
- 3.5-inch IPS touchscreen, 480 × 320
- Weight
- 605 g (without battery)
650 lari
In stock
TX15 ELRS: quantity 1

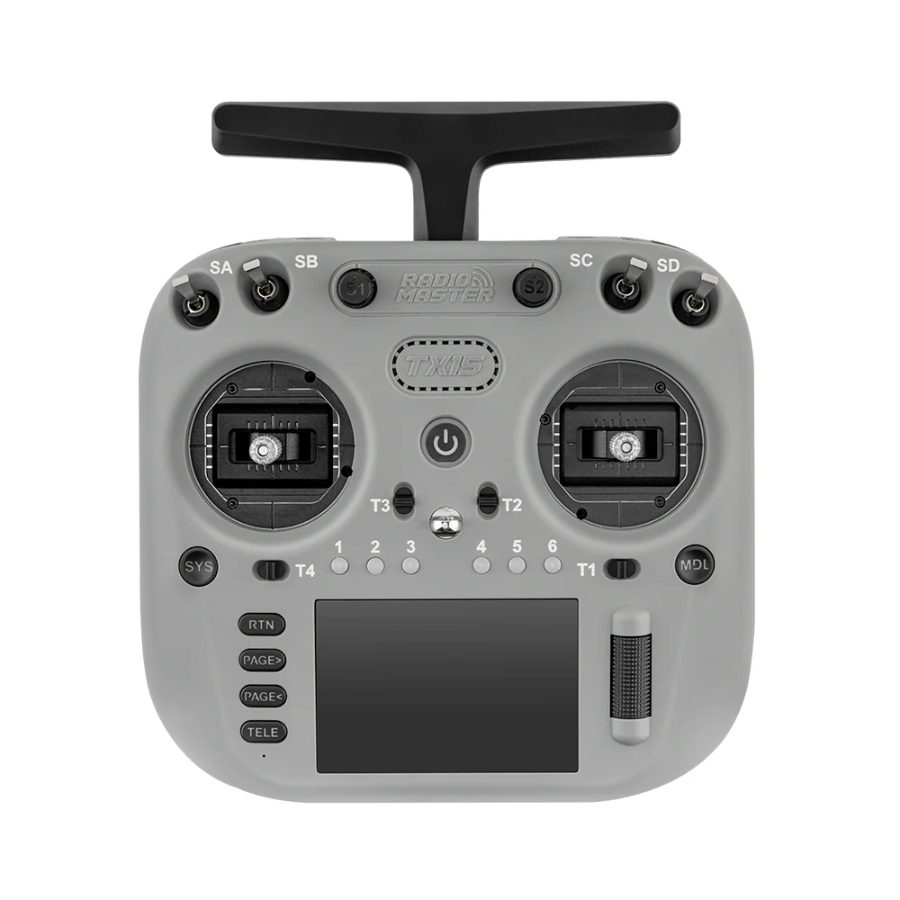

The RadioMaster TX15 ELRS is an EdgeTX radio built around a 3.5-inch 480 × 320 IPS touchscreen, for pilots who want a full-size radio on 2.4GHz or 900MHz. The internal ExpressLRS module uses a Semtech LR1121 with adjustable power, and a JR bay takes any other module. The TX15 has V5.0 hall gimbals with M4 sticks; the TX15 MAX has CNC aluminium AG02 hall gimbals. Around them: four 3-position switches, two shoulder controls (latching and momentary), two dials, four trims and a motion sensor for tilt functions. STM32 H7, fan cooling, microSD up to 32 GB, USB-C and a DSC trainer port. Runs on a 2S LiPo, two 18650s or 21700s (not included). 16 channels; 605 g (672 g for the MAX) without battery.
Additional information
Radio link
- Internal module
- Built-in ExpressLRS
- Transceiver
- Semtech LR1121
- Frequency
- 2.4GHz or 900MHz
- Transmit power
- Adjustable
- Antenna
- Foldable, 2 dB gain
- External module bay
- JR-compatible
- Also compatible with
- mLRS
- Versions
- FCC / LBT
Controls
- Gimbals
- V5.0 Hall sensor
- Gimbal sticks
- M4
- 3-position switches
- 4
- Shoulder controls
- 1 latching, 1 momentary (swappable toggles included)
- Dials
- 2
- Trims
- 4
- Position buttons
- 6
- Menu buttons
- SYS, MDL, TELE, RTN, PAGE<, PAGE>
- Motion sensor
- Built-in (tilt functions)
Hardware
- Processor
- STM32 H7
- Display
- 3.5-inch IPS touchscreen, 480 × 320, 600 nits
- Storage
- Built-in flash + microSD slot (up to 32 GB)
- Cooling
- Fan with aluminium heat sink
- Audio
- Speaker, headphone jack
- Ports
- USB-C (charging, simulator, updates), DSC trainer port
